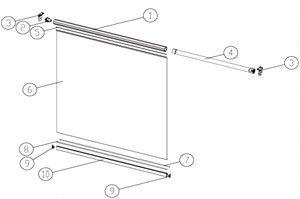

| ‧MOTORIZED ROLLER BLIND |
|
No |
Part name |
Material |
1 |
Alum. Tube |
aluminum |
2 |
End cap |
plastic |
3 |
Installation bracket |
metal |
4 |
Tubular motor |
metal |
5 |
Double side tape |
plastic |
6 |
Fabric |
polyester |
7 |
PVC spline |
plastic |
8 |
Double side tape |
plastic |
9 |
Bottomrail end cap |
plastic |
10 |
Bottomrail |
aluminum |
|

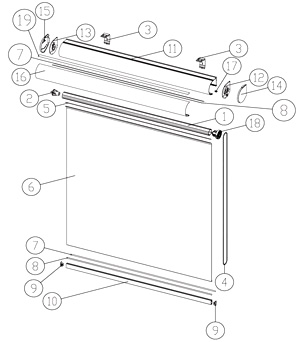

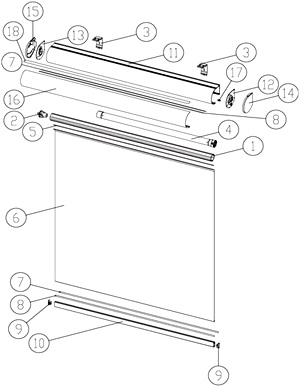

‧MOTORIZED ROLLER BLIND WITH CASSETTE |
|
No |
Part name |
1 |
Alum. Tube |
2 |
End cap |
3 |
Installation bracket |
4 |
Tubular motor |
5 |
Double side tape |
6 |
Fabric |
7 |
PVC spline |
8 |
Double side tape |
9 |
End cap |
10 |
Bottomrail |
11 |
Cassette Alum. Rail |
12 |
Right Plate |
13 |
Left Plate |
14 |
Right end plate |
15 |
Left end plate |
16 |
Cassette fabric |
17 |
Clip |
18 |
Double side tape(cassette) |
|

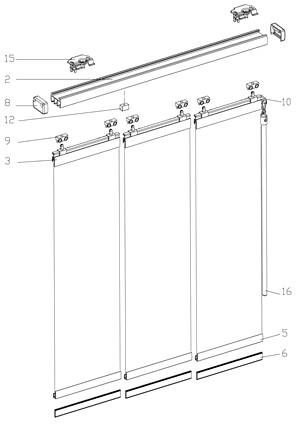

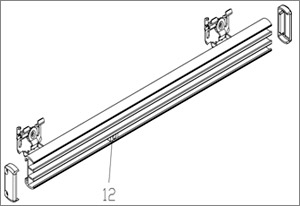

‧PANEL BLIND
(WAND CONTROL) |
|
No |
Part name |
Material |
1 |
Panel track, in 6 track |
Aluminum |
2 |
Panel track, in 3 track |
Aluminum |
3 |
Top Alum. Rail
(clip-in type) |
Aluminum |
4 |
Top Alum. Rail
(Velcro type) |
Aluminum |
5 |
Bottom Alum. rail |
Aluminum |
6 |
Aluminum bar |
Aluminum |
7 |
End cap for 6 track |
PC |
8 |
End cap for 3 track |
PC |
9 |
2 pcs snap in
carriers |
PC |
10 |
Wand holder |
PC |
11 |
Spacing fixture |
PC |
12 |
Stopper |
PC |
13 |
Whee to fit top &
bottomrail |
POM |
14 |
Spider bracket for
6 track |
Metal |
15 |
Spider bracket for
3 track |
Metal |
16 |
Wand |
Aluminum |
 |

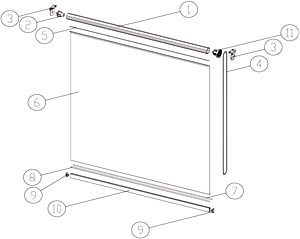

‧ROLLER BLIND |
 |
No |
Part name |
Material |
1 |
Alum. Tube |
aluminum |
2 |
End cap |
plastic |
3 |
Installation bracket |
metal |
4 |
Endless chain |
plastic |
5 |
Double side tape |
plastic |
6 |
Fabric |
polyester |
7 |
PVC spline |
plastic |
8 |
Double side tape |
plastic |
9 |
Bottomrail end cap |
plastic |
10 |
Bottomrail |
aluminum |
11 |
Roller mechanism |
plastic |
|
‧ROLLER BLIND WITH CASSETTE |
 |
No |
Part name |
1 |
Alum. Tube |
2 |
End cap |
3 |
Installation bracket |
4 |
Endless chain |
5 |
Double side tape |
6 |
Fabric |
7 |
PVC spline |
8 |
Double side tape |
9 |
End cap |
10 |
Bottomrail |
11 |
Cassette Alum. Rail |
12 |
Right Plate |
13 |
Left Plate |
14 |
Right end plate |
15 |
Left end plate |
16 |
Cassette fabric |
17 |
Clip |
18 |
Roller mechanism |
19 |
Double side tape
(cassette) |
|

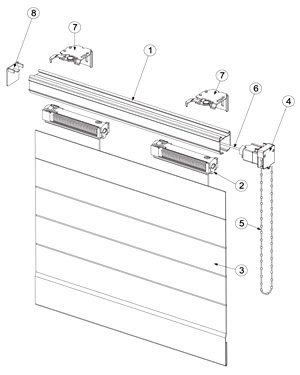

‧ROMAN BLIND |
|
No |
Part name |
Material |
1 |
Headrail |
aluminum |
2 |
Spool with cord |
plastic / polyester |
3 |
Fabric |
polyester |
4 |
Mono control unit |
plastic |
5 |
Ball chain |
plastic |
6 |
Tilt rod |
metal |
7 |
Spider bracket |
metal |
8 |
End cap |
plastic |
|

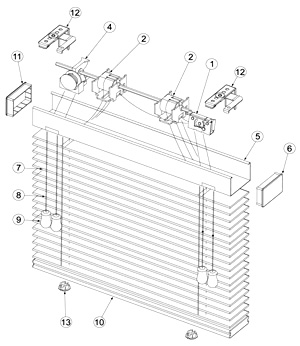

‧VENETIAN |
 |
No |
Part name |
Material |
1 |
Cord lock |
plastic / metal |
2 |
Tape roll &
tape roll support |
plastic |
4 |
Cord tilter |
plastic /
zinc alloy |
5 |
Head rail
(low profile) |
metal |
6 |
End cap |
plastic |
7 |
Slat |
wood or Foamwood |
8 |
Pull cord |
polyester |
9 |
Tassel |
plastic |
10 |
Bottomrail |
wood or PVC |
12 |
Spider bracket |
metal |
13 |
Button of
bottomrail |
plastic |
|

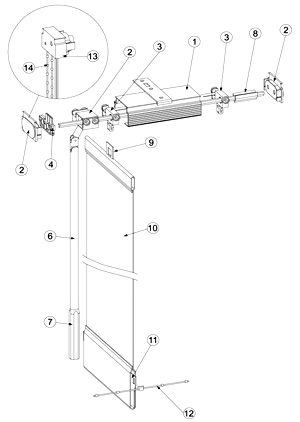

‧VERTICAL |
 |
No |
Part name |
1 |
Alum. Track |
2 |
Wand control unit |
3 |
Carrier with spacer |
4 |
Magnetic rod support |
6 |
Wand |
7 |
Wand knob |
8 |
Space tube |
9 |
plastic hanger |
10 |
Vertical slat |
11 |
Vane weight |
12 |
Bottom chain |
13 |
Drive unit set with cover |
14 |
Ball chain |
|
